CYRANNUS® Systems:
Advanced Technology for Your Specific Needs
Our CYRANNUS® systems offer innovative solutions for a wide range of applications in diamond research and production. With custom configurations and state-of-the-art technology, they set new standards in efficiency, precision, and versatility.
CYRANNUS TB 60
Specialized for the efficient production of high-quality jewelry diamonds with excellent brilliance and purity.
CYRANNUS TB 200

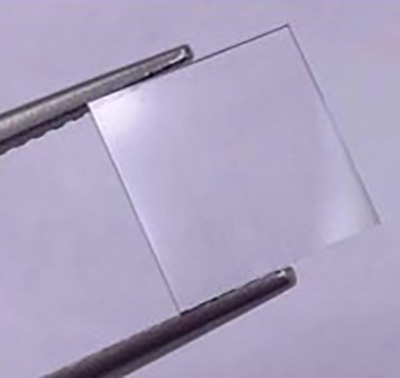

Versatile system for the production of high-quality Single Crystal Diamond (SCD) and Polycrystalline Diamond (PCD) for jewelry and technical applications.

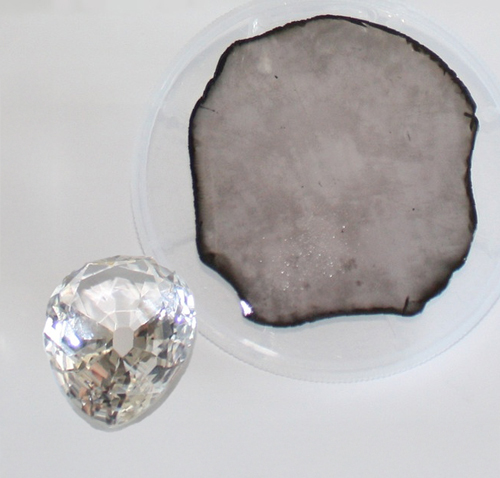

CYRANNUS HE100 / HE300
Tailored for heteroepitaxial diamond synthesis.
Available in variants HE100 (for wafers up to 100 mm) and HE300 (for wafers up to 300 mm). Ideal for applications such as those used at the University of Augsburg in the development of new semiconductor materials.

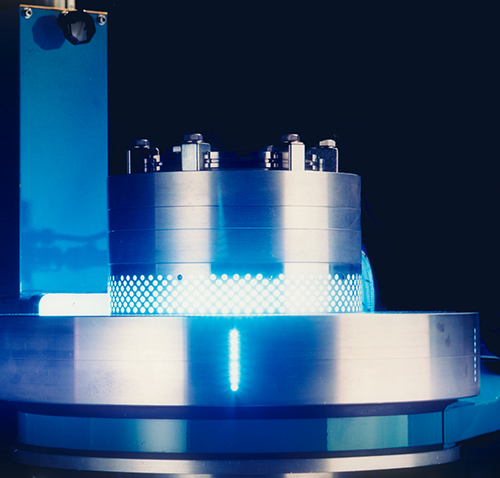

CYRANNUS R&D
All-around
The flexible research platform for universities and high-tech applications with a 60 mm sample holder. Offers precise process control in the ppb range, an integrated heater and exchangeable cooler, and a doping station for demanding experiments and innovative material developments. Also suitable for quantum applications.
Your Benefits with the CYRANNUS® Systems:
- Dual Functionality: Production of high-quality SCD and robust PCD in one system.
- Superior Quality: Exceptional purity for SCD, excellent density for PCD.
- Customized Properties: Precise control for adapted material properties.
- High Reproducibility: Consistent growth for both diamond types.
- Increased Efficiency: Faster growth rates and better material utilization.
- User-Friendly: Simplified operation for complex dual-mode production.
- Long-term Profitability: High ROI across multiple diamond product lines.
With all CYRANNUS systems, you get these advanced features:
- Z-axis adjustment
- 4 MFCs for precise gas control (ppb range)
- 360° process observation
- Integrated camera
- Remote access for control and monitoring
- Comprehensive recipe management
- Operating modes: manual, semi-automatic, and fully automatic
Fabless Manufacturing
Focus on sales and applications – we take care of development and production.
MWCVD Technology:
The Key to Synthesizing High-Quality Diamonds
Microwave Plasma CVD (MWCVD) technology is an advanced process for synthesizing diamond materials with outstanding properties. iplas uses this innovative technology in its systems and as part of its fabless manufacturing to offer you the highest quality and flexibility.
The Principle of Microwave Plasma CVD
in Detail
MWCVD is a variant of chemical vapor deposition (CVD) that uses microwaves to create a plasma from reactive gases. Typical source gases are methane (carbon source) and hydrogen. The plasma provides the energy to break down these gases and create reactive species that react on the surface of a substrate, forming a diamond layer. The substrate temperature and gas pressure are crucial process parameters.
Why MWCVD Is the Ideal Choice for Diamond Synthesis:
- High Purity: Enables the synthesis of diamond materials with low impurities.
- Precise Control: Provides accurate control of process parameters to specifically influence diamond properties (e.g., crystal quality, doping).
- Versatility: Suitable for the synthesis of various diamond forms (single-crystal, polycrystalline, nanocrystalline) and for coatings on different substrates.
- High Growth Rates: Enables efficient production in many application areas.
- Homogeneous Coatings: Ensure a uniform layer thickness and quality over large areas.
Our Expertise – Your Advantage
iplas has many years of experience and comprehensive know-how in MWCVD technology. We continuously develop and optimize our systems to deliver the best possible results. Our team of experts supports you with process development and is available for questions and training. By combining our advanced systems with our deep knowledge, we enable you to synthesize diamond materials that meet the highest standards.
From Jewelry to High-tech –
The Diverse Application Possibilities
Application Possibilities of MWCVD Diamonds
- Jewelry Industry: Brilliant and high-quality synthetic diamonds in various colors and sizes that can be produced ethically and sustainably.
- Tool Industry: Extremely hard and wear-resistant diamond coatings for cutting tools, drills, and milling cutters, which significantly increase lifespan and efficiency.
- Optics: Transparent diamond windows and lenses with exceptional hardness, scratch resistance, and a wide transmission range, ideal for laser applications, spectroscopy, and extreme environments.
- Electronics: Diamond as the next-generation semiconductor material with high thermal conductivity, high breakdown field strength, and high charge carrier mobility for high-performance, high-frequency, and power electronics.
- Sensor Technology: Highly sensitive diamond sensors for temperature, pressure, radiation, and chemical detection in demanding environments.
- Medicine: Biocompatible diamond coatings for implants to improve durability and reduce rejection reactions, as well as precise surgical instruments.
- Acoustics and MEMS: Ultra-thin diamond membranes for speakers and microphones with excellent acoustic properties, as well as diamond structures for micro-electromechanical systems (MEMS).
- Quantum Technology: Production of diamond materials with specific nitrogen-vacancy (NV) centers for quantum computers, quantum sensing, and quantum communication.
- High-Temperature and High-Pressure Applications: Diamond as an extremely resistant material for seals, bearings, and other components in extreme environments.
- Research and Development: MWCVD systems as flexible platforms for the research of new diamond materials and applications in various scientific disciplines.
Would you like to learn more about MWCVD technology and its applications? Contact our team for a personal consultation!
Why iplas CYRANNUS® Systems Are Convincing:
Up to 3 times higher output and superior technology compared to systems based on Astex reactors.
While systems based on Astex reactors have an established presence in the field of MWCVD systems, iplas CYRANNUS® systems offer decisive advantages that are manifested in significantly higher output and advanced technology. Our proprietary CYRANNUS® technology, a pioneer in the industry since 1995, enables even more efficient plasma generation and highly developed process control, which in many applications can lead to an output up to 3 times higher compared to conventional systems based on Astex reactors.
This remarkable productivity gain is made possible by several innovative features of our systems:
- Revolutionary Reactor Design: iplas CYRANNUS® reactors use a groundbreaking design that ensures exceptionally homogeneous plasma distribution over even larger substrate areas. This results in significantly increased, uniform growth rates and a maximized yield of high-quality diamonds per production cycle.
- Highly Efficient Microwave Coupling: Our optimized microwave coupling transfers energy into the plasma with maximum efficiency. This creates extremely high plasma densities while reducing energy consumption, leading to significantly faster growth rates.
- Ultimate Process Control: The most advanced control technology of our CYRANNUS® systems allows for the most precise regulation of all relevant process parameters in the sub-ppb range. This unrivaled precision is essential for absolutely reproducible results and the maximum acceleration of growth speed without any loss of product quality.
- Superior Flexibility and Scalability: iplas systems are designed from the ground up to be highly flexible in adapting to specific and changing customer needs and can be easily scaled up if required. This allows you to exponentially increase your output and gain significant competitive advantages.
- Unrivaled Expertise: As pioneers and inventors of the CYRANNUS® MWCVD technology, we have unique and continuously growing expertise that is directly reflected in the superior performance of our systems.
The decision for an iplas CYRANNUS® system means an investment in a technology that can potentially triple your production volume and secure you an insurmountable technological lead in the demanding market for synthetic diamonds – especially when compared to systems based on older reactor designs. Contact us to receive detailed information on the specific benefits for your application and to learn how we can help you achieve your most ambitious production goals.
